Fallbacks

Fallbacks#

Fallbacks are the self-healing mechanism of a Sugarcoat component. They define the set of Actions to be executed when a failure is detected in the component’s Health Status.

Instead of crashing or stopping when an error occurs, a Component can be configured to attempt recovery strategies, such as restarting a specific algorithm, re-initializing a driver, or, in the worst case, shutting down or broadcasting a failure to the rest of the system.

Fallbacks and Health Status

Component Fallbacks#

Failure Hierarchy#

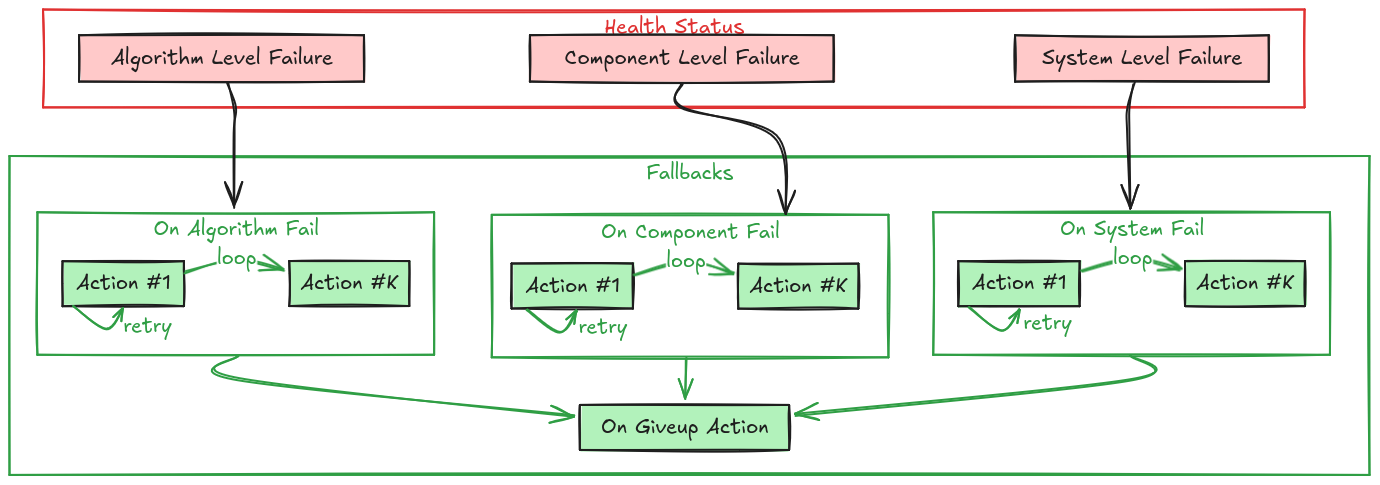

The Component checks its internal health status at the defined component loop_rate. If a failure is detected, it selects the appropriate fallback strategy based on the specific type of failure. The priority is handled in the following order:

  • System Failure (on_system_fail): Failure external to the component (e.g, “Failed to collect all required inputs”), or a critical system-level failure (e.g., “Out of memory”).

  • Component Failure (on_component_fail): Failures of the component shell or node (e.g., “Driver disconnected”).

  • Algorithm Failure (on_algorithm_fail): Failures specific to the internal logic/algorithm (e.g., “Path planner failed to find a path”, or “ML model client failed to connect to the server”).

  • Generic/Any Failure (on_any_fail): A catch-all strategy for any failure not handled by a specific policy above.

If a specific fallback is not defined (is None), the system checks the next applicable level (usually falling through to on_any_fail).

Note

Components do not have any default fallback behavior. Fallbacks can be defined per component or for the whole component graph.

Fallback Strategies#

A Fallback consists of an Action (or a list of Actions) and a Retry Policy.

Single Action Strategy#

When a single action is defined, it is executed every time the associated failure is caught until:

  • The action returns True (indicating successful execution and the component is considered healthy again).

  • The max_retries count is reached. If max_retries is None then the action will be re-tried indefinitely.

If max_retries is reached, the component enters the Give Up state.

Multi-Step Strategy (List of Actions)#

You can define a sequence of actions to try in order. This is useful for tiered recovery (e.g., “First try to reset the connection. If that fails, try restarting the whole node”).

  • Execution Flow: The system attempts the first action in the list.

  • Retries: Each action in the list is attempted max_retries times.

  • Progression: If an action fails (doesn’t return True) after its retries are exhausted, the system moves to the next action in the list.

  • Give Up: If the last action in the list fails after its retries, the component enters the Give Up state.

The Give Up State#

When all strategies have failed (all retries of all actions exhausted), the component executes the on_giveup fallback. This is typically used for final cleanup or to permanently mark the node as dead.

Declaring Failures#

Important: Fallbacks are only triggered if the component reports a failure. When writing custom components, it is your responsibility to detect errors in your main loop or callbacks and update the self.health_status object.

You should use the following methods to report status:

  • self.health_status.set_fail_algorithm(optional_failed_algorithm_name_or_names)

  • self.health_status.set_fail_component(optional_failed_component_name_or_names)

  • self.health_status.set_fail_system(optional_failed_topics_name_or_names)

Once the status is set to a failure state, the component internal check will automatically begin executing the configured fallback actions.

Defining Custom Fallbacks in your Component#

You can create custom recovery methods in your component. These methods should return bool (True if recovery succeeded, False otherwise). You can also use the @component_fallback decorator to ensure that fallback methods can only be called after the component is configured and running.

Example: Custom Driver with Health Checks In this example, the _execution_step checks the hardware connection. If it fails, it sets the component status to failed. This triggers the try_reconnect fallback.

from ros_sugar.component import BaseComponent, component_fallback
from ros_sugar.action import Action

class MyDriver(BaseComponent):
    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)

        # Configure the fallback behavior
        # If the component fails, try to reconnect
        self.on_system_fail(fallback=Action(self.try_reconnect), max_retries=3)

        # If reconnection fails 3 times, give up and shutdown
        self.on_giveup(fallback=Action(self.safe_shutdown))

    def _execution_step(self):
        """Main loop of the driver"""
        try:
            # Normal operation
            data = self.hardware_interface.read()
            self.publish_data(data)

            # Explicitly mark as healthy if successful
            self.health_status.set_healthy()

        except ConnectionError as e:
            self.get_logger().error(f"Hardware error: {e}")

            # [IMPORTANT] Declare the failure to trigger the fallback!
            self.health_status.set_fail_system(self.hardware_interface.name)

    @component_fallback
    def try_reconnect(self) -> bool:
        """Attempt to reconnect to the hardware"""
        self.get_logger().info("Fallback: Attempting to reconnect...")
        success = self.hardware_interface.connect()

        if success:
            self.get_logger().info("Reconnection successful!")
            return True # Signals that recovery worked

        return False # Signals that recovery failed, will retry or move to next step

    @component_fallback
    def safe_shutdown(self) -> bool:
        """Park the robot and stop"""
        self.get_logger().error("Giving up: Shutting down driver.")
        self.robot.stop()
        return True

Programming Fallbacks in your Recipe#

You can configure a component’s fallbacks directly in your recipe by calling:

  • on_fail(action, max_retries=None): Sets the fallback for Any failure (the catch-all). max_retries=None implies infinite retries for a single action.

  • on_component_fail(action, max_retries=None): Sets the fallback specifically for component-level failures.

  • on_algorithm_fail(action, max_retries=None): Sets the fallback specifically for algorithm-level failures.

  • on_system_fail(action, max_retries=None): Sets the fallback for system-level failures.

  • on_giveup(action): Sets the final action to execute when all other fallbacks have failed.

    from ros_sugar.core import BaseComponent
    from ros_sugar.actions import ComponentActions

    my_component = BaseComponent(component_name='test_component')

    # Set fallback for component failure to restart the component
    my_component.on_component_fail(fallback=ComponentActions.restart(component=my_component))

    # Change fallback for any failure
    my_component.on_fail(fallback=Action(my_component.restart))

    # First broadcast status, if another failure happens -> restart
    my_component.on_fail(fallback=[Action(my_component.broadcast_status), Action(my_component.restart)])
